Capacity Services

5 Axis Machining

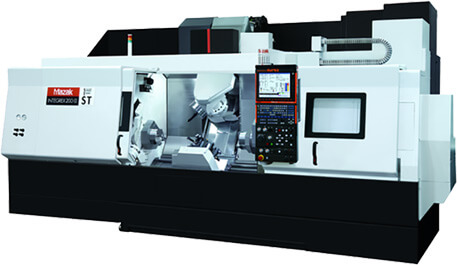

MAZAK Integrex 200 s iv

Max Machining Dia. 660 mm MAZAK Inegrex 200 s iv
Max Machining Length 1016 mm
Main Spindle 5000 rpm
Second Spindle 5000 rpm
Milling Spindle 12000 rpm
40 Tool Stations
2 mtr Bar Feeder

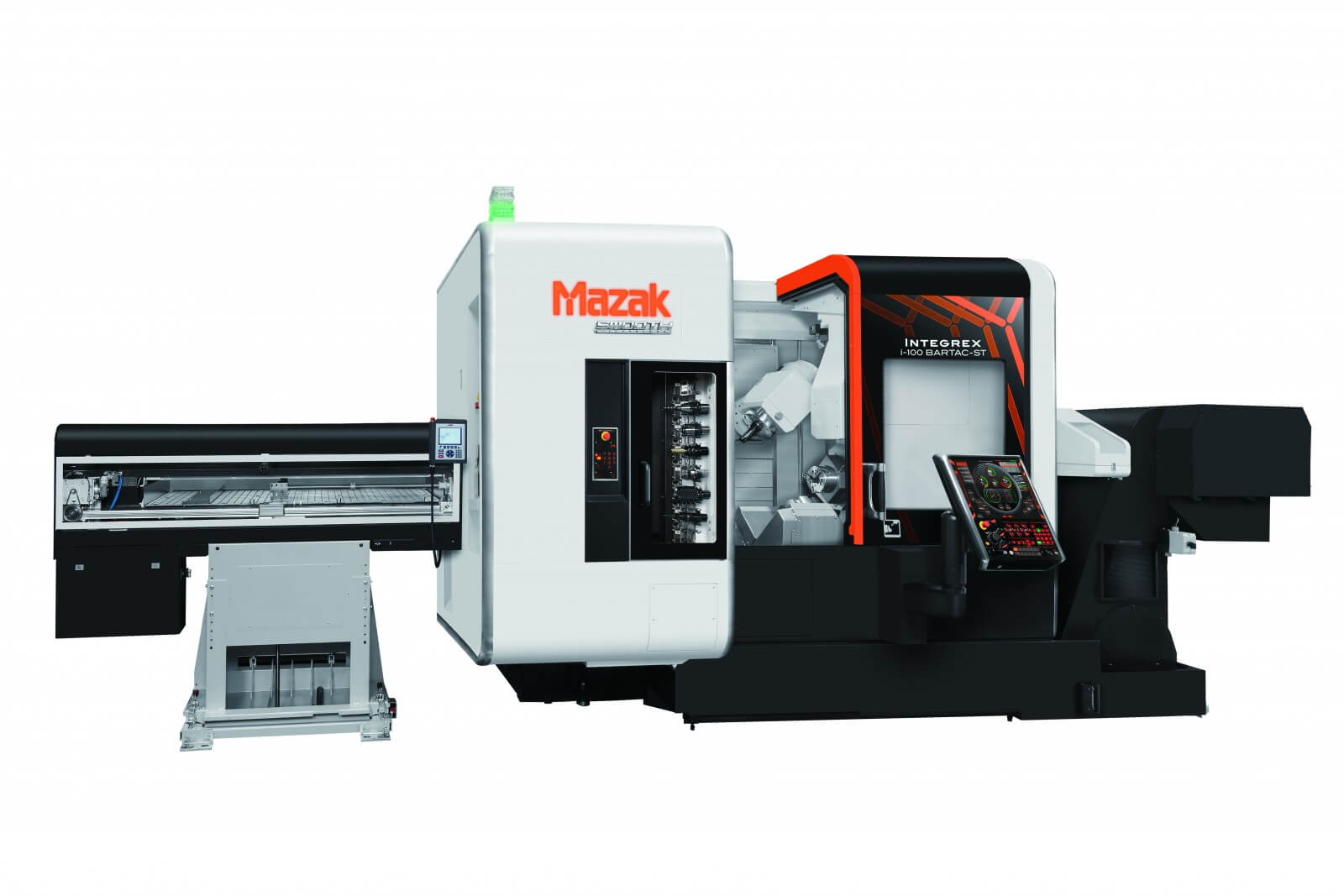

Mazak Integrex 1100

Max Machining Dia. 500 mm Mazak Integrex 1100
Max Turning Length 520 mm
Main Spindle 6000 rpm
Milling Spindle 12000 rpm
72 Driven Tool Stations
1000mm Bar Feeder

CNC Turning Center

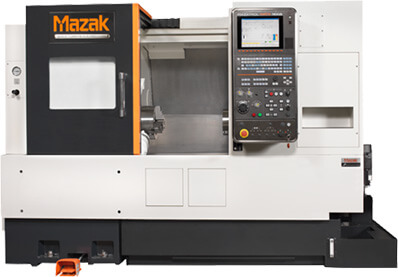

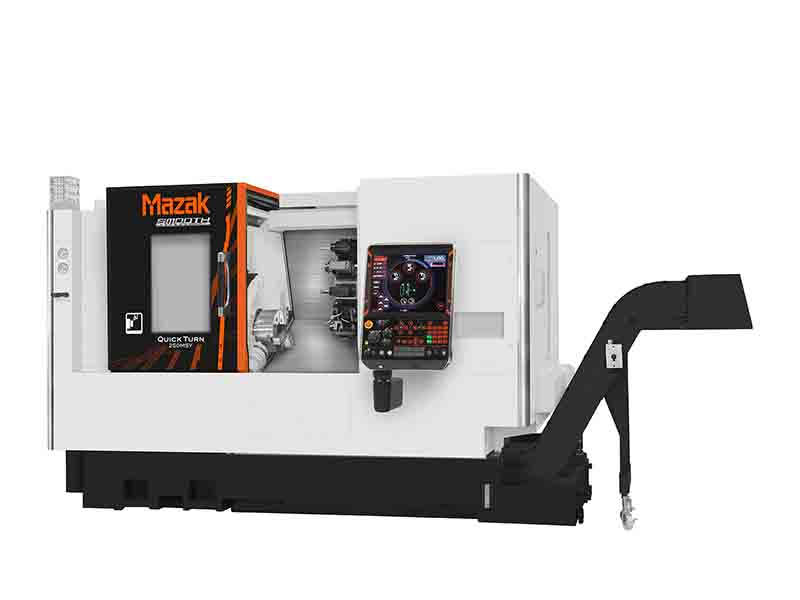

MAZAK Quickturn Nexus 250 MY Driven Tooling Lathe with Y Axis

Max Machining Dia. 380 mm MAZAK Quickturn Nexus 250 MY Driven Tooling Lathe with Y Axis
Max Machining Length 500 mm
Main Spindle 4000 rpm
12 Driven Tool Stations
1150mm Bar Feeder

CNC Vertical Machining Centres

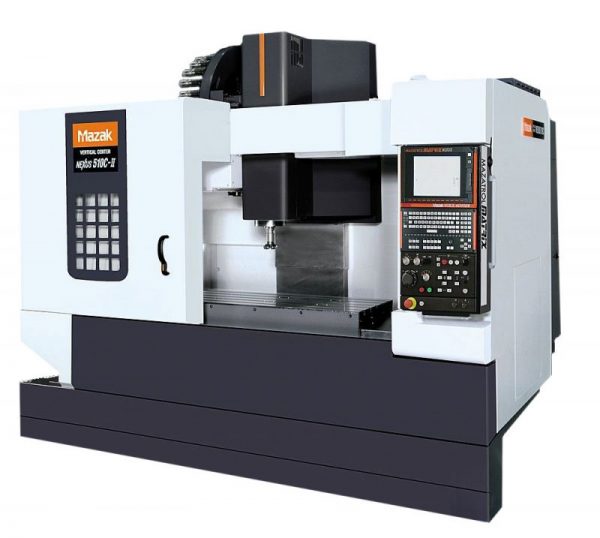

MAZAK Nexus 510C-2 4th Axis Kitagawa NC Rotary Table

Erowa Compact Robot fully automated loading system for 24/7 lights out manufacturing The Nexus is fitted with Renishaw Optical Inspection Probe System for in process inspection. MAZAK Nexus 510C-2 4th Axis Kitagawa NC Rotary Table
X 1300 mm
Y 510 mm
Z 570 rpm
Spindle 12000 rpm
30 Tool Stations

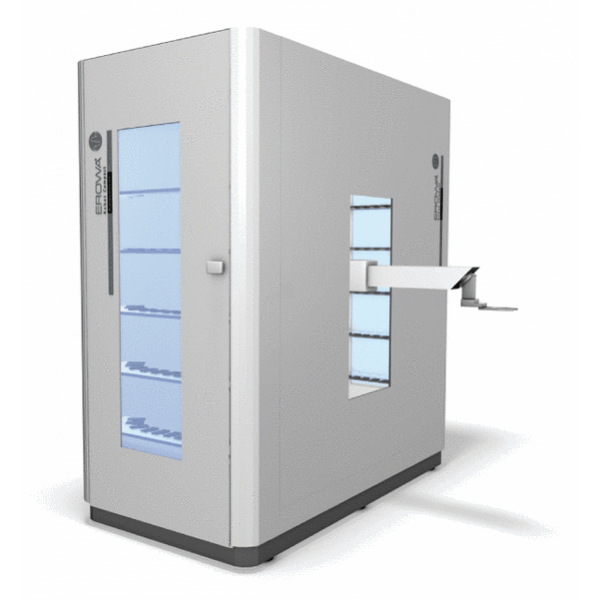

Erowa Compact Robot

C/W 50 Pallets Erowa Compact Robot

Inspection

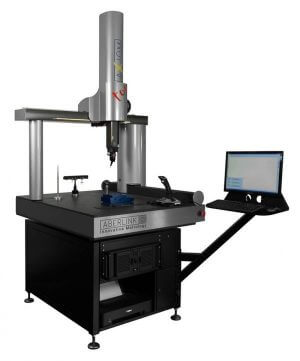

Axiom Too CNC

X 640 mm Axiom Too
Y 1500 mm
Z 500 mm


Additional Plant

Shot Blasting Cabinet
Automatic Bandsaw cut up to 6” dia.
Broaching Equipment
Polishing Equipment
Fork Truck
Delivery Vehicle ( 1 Tonne capacity )

Additional Services

Metal Surface Treatment ie.: Anodising, Heat Treatments
Polishing
TIG / MIG Welding & Fabrication
